Stainless Steel Grating Patterns

Stainless Steel grating is used extensively in Water / Sewerage Treatment Plants, Grain Silos, Chemical Plants, the Food Industry and for trafficable drain grates.

Learn more about stainless steel grating by downloading our  Webforge Brochure, visiting our Media Centre  or by contacting your  local sales representative.

product_detail_list
STEEL PATTERN A
STEEL PATTERN B

Patterns A & B

A & B patterns conform to the AS 1657 Code for Fixed Platforms, Walkways, Stairway and Ladders.

These patterns are the most commonly specified and installed. Patterns A & B with their 30mm load bar centres have the greatest resistance to surface impact.

NB: Stainless Steel grating is not available with a serrated top surface

STEEL PATTERN C
STEEL PATTERN D

Patterns C & D

C & D patterns are lighter and more economical than the A & B Pattern, while still conforming to the requirements of AS 1657.

This range is ideal in areas which do not have to withstand high impacts or heavy loading.

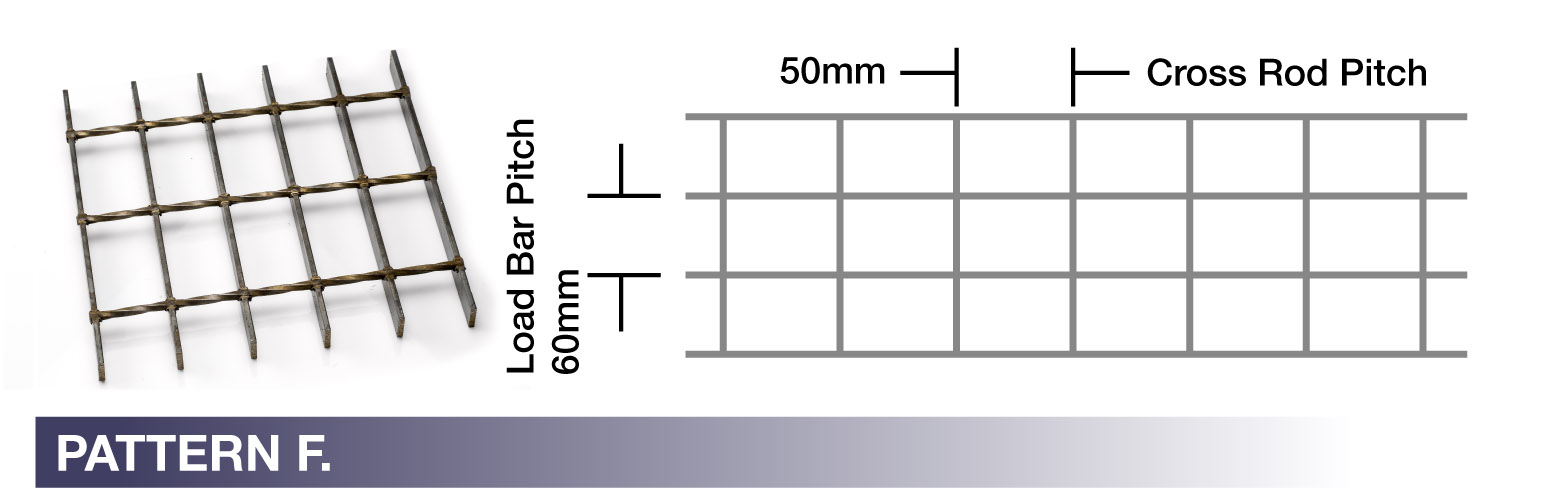

STEEL PATTERN F
Please note: images above are of Mild Steel grating

Pattern F

The large square openings (nominally 60 x 50) allow most materials to fall through the grating, thus keeping the walking surface clear and safe.

This product is frequently specified for conveyor walkways and floors.
