Grating Stair Treads

Webforge grating treads can be made from any grating pattern or profile, and to any dimensions to suit the relevant stairway. In the interest of economy we suggest that the recommended widths and lengths be used wherever possible.
Learn more about stainless steel grating by downloading our  Webforge Brochure, visiting our Media Centre  or by contacting your  local sales representative.

Stair Treads are available in these Webforge products:

  • Steel Grating
  • Aluminium Grating
  • Stainless steel Grating
  • FRP Grating

A choice of grating profiles and tread formats are available

6 tread formats are available with wither bolted or welded fixing and a choice of three nosings:

  • Plain
  • Floor plate
  • Abrasive

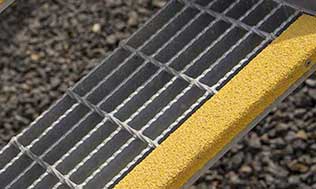

nav_stairtreads
T1
Tread Type T1
Welded fixing, Banded Ends, No Nosing
T2-Steel-treads
Tread Type T2
Bolted fixing, Holed End Plates, No Nosing

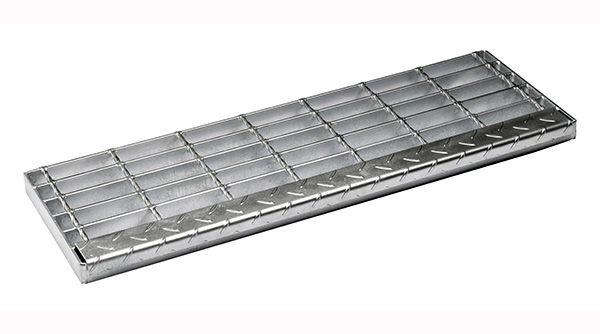

Tread Type T3
Welded fixing, Banded Ends, Floor Plate Nosing

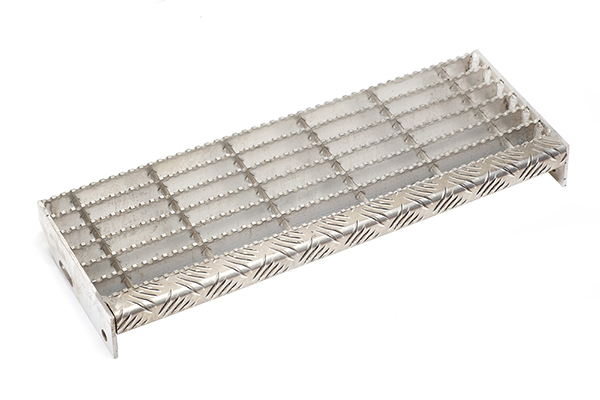

Tread Type T4
Bolted fixing, Holed End Plates, Floor Plate Nosing

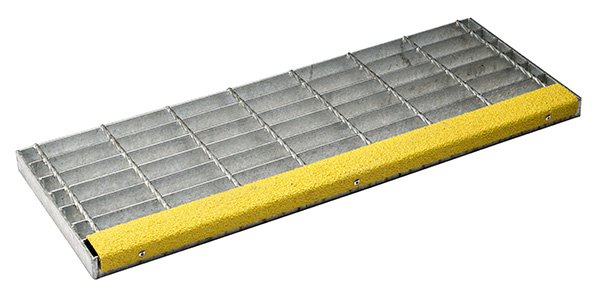

Tread Type T5
Welded fixing, Banded Ends, Abrasive Nosing
T6 Steel Stair Tread
Tread Type T6
Bolted fixing, Holed End Plates, Abrasive Nosing
*images of Steel treads shown above

ASNZ1657 requires that the tread nosing is clearly visible against the background

The standard tread end plates for the different width stair treads are shown below.  Tread end plates are manufactured from 65 x 5 flat bar. For load bars >40mm depth, special end plates are required.

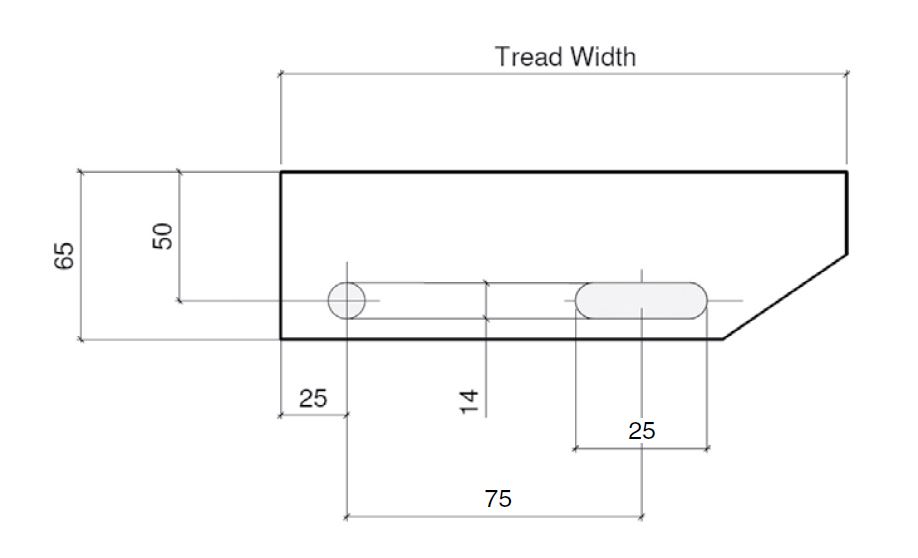

155,165,185mm Treadwidths
155, 165, 185mm Tread Widths

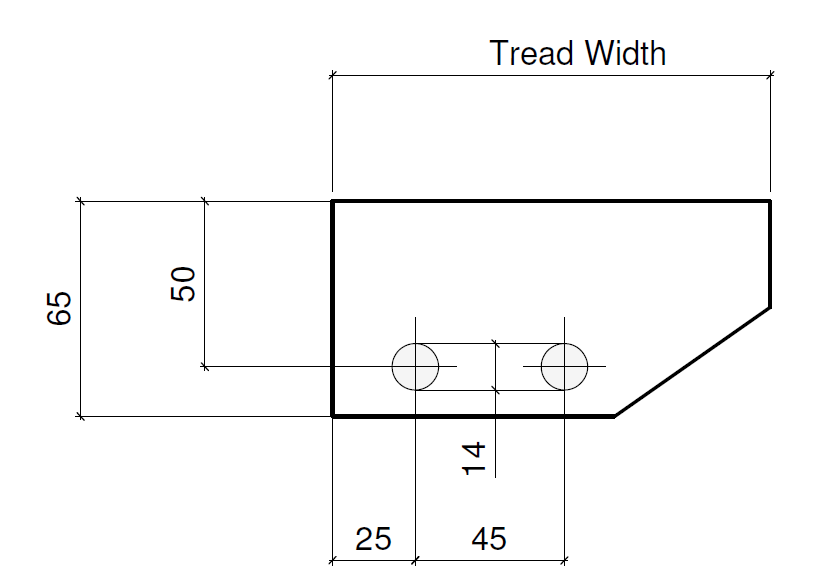

125_tread_end_plate
125mm Tread Widths

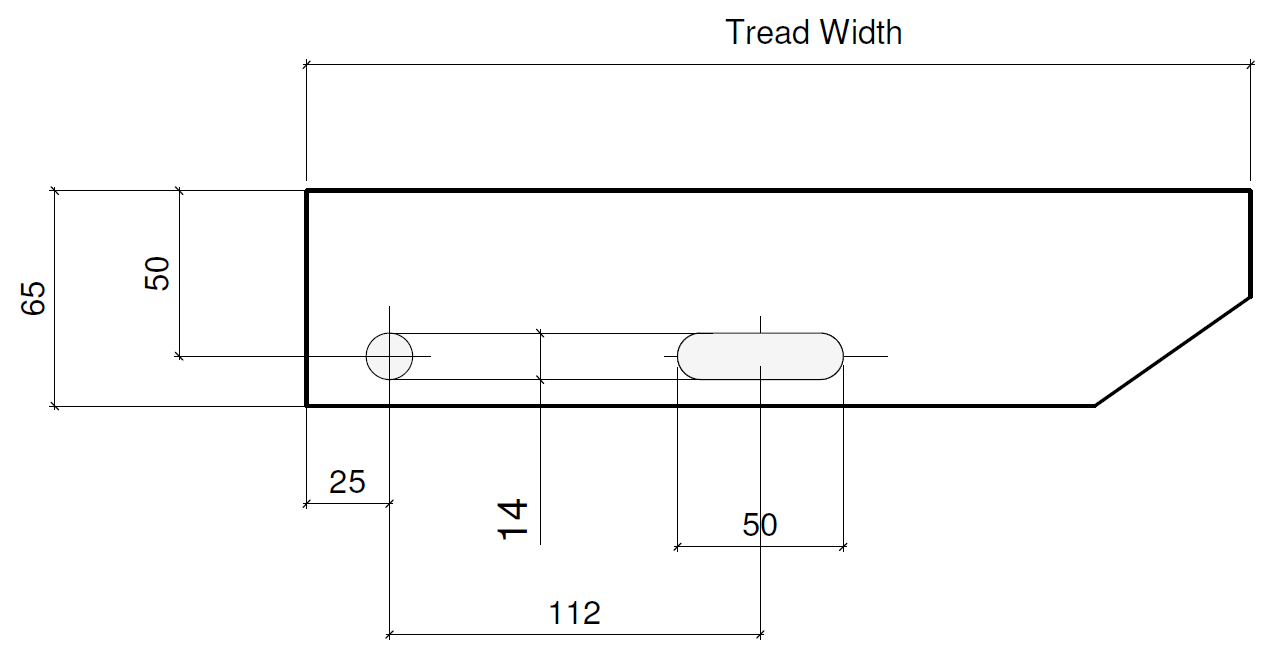

245_plus_tread_end_plate
205, 215, 245, 275, 285, 305 & 325mm Tread Widths



All treads sniped to 35ยบ unless requested otherwise

Pattern and Load Bar selection

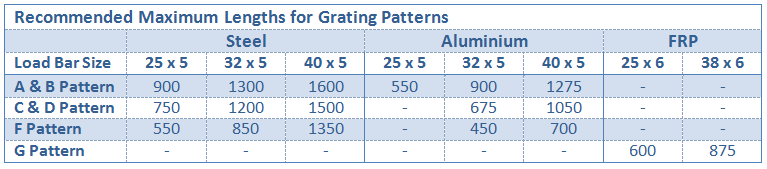

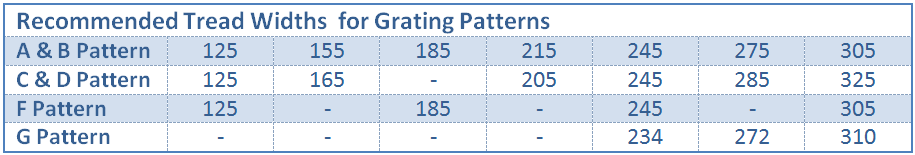

The tables below indicate the maximum width and length for stair treads, depending on the combination of material, pattern and load bar selected.  Standard stair treads are available ex-stock from Webforge locations; these standard profiles are complimented by a custom manufacturing service.
Max_tread_widths
Max_tread_lengths

Stringer Drilling

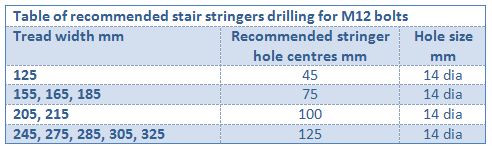

Please find below a table of recommended stair stringer hole centres.
stringer_drilling_table
