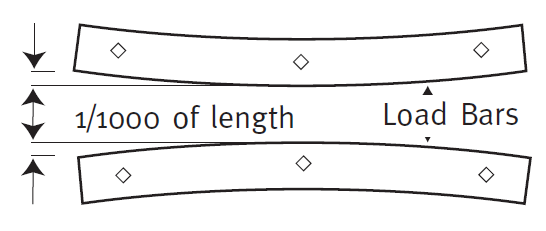

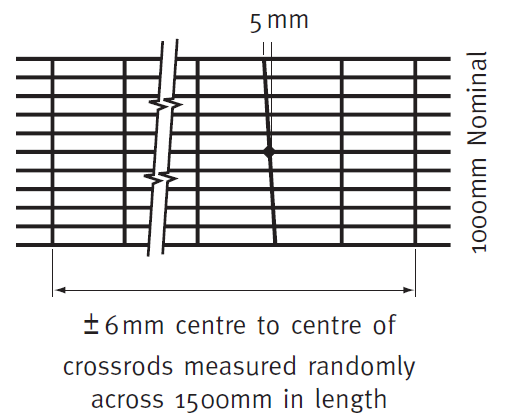

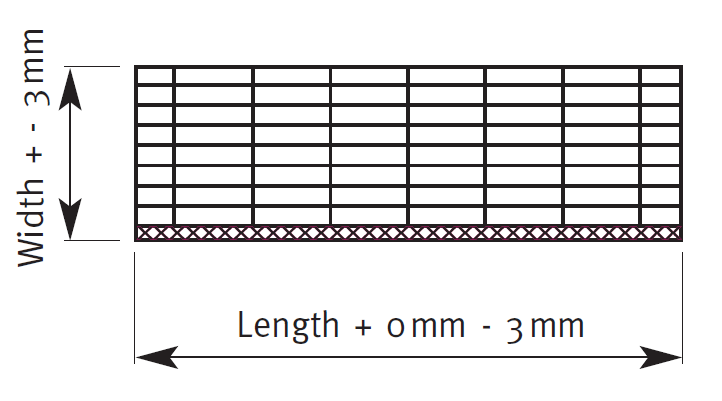

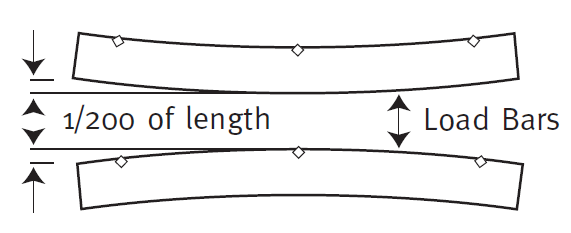

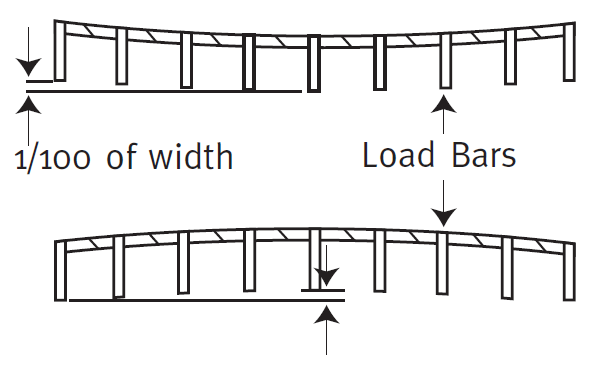

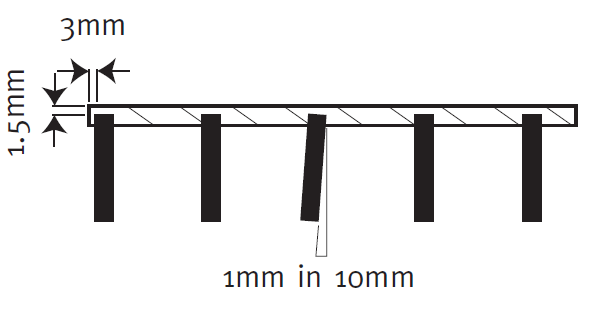

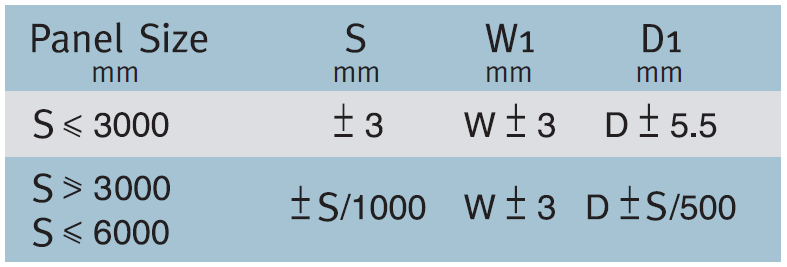

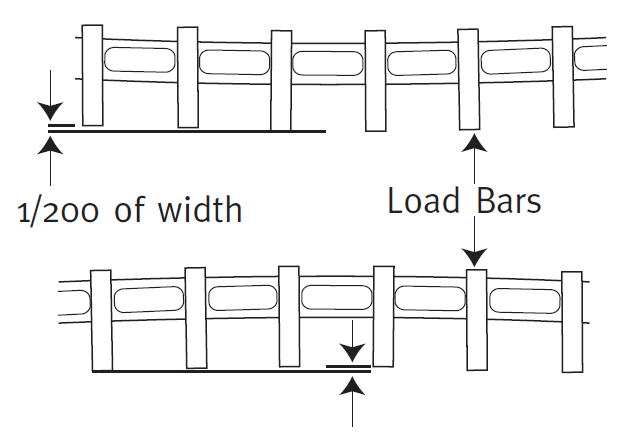

Grating Fabrication Welding
Banding Bar weld 20mm or half of depth (whichever is greater) Kick Plate weld full depth
Banding bars and attachments are welded with minimum 3mm fillet welds to one side of:
every 5th load bar on A & B Pattern grating
every 4th load bar on C & D Pattern grating
every 3rd load bar on F Pattern grating
Other welding is applied to cut-outs, splays or circles as appropriate or as requested.
All penetrations and cut-outs will be enlarged to the nearest Load Bar when they fall within 40mm of that Load Bar.
No welds to protrude below U/S of Grating
Banding Bars to be 5mm thick and all Kick Plate to be 6mm thick.
All banding will be in plain material unless specified otherwise
Edge Bars between side cut and join serrarated panels must be serrarated.
Please refer to Webforge Locker Grating Welding Standard drawing FLGR-EX-001
